3.5 kw Portable AC Charger

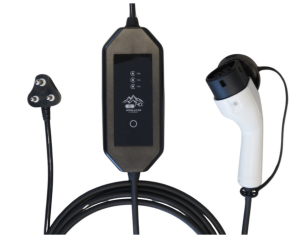

M-Tech 3.5 kW Portable AC Charger

The M-Tech 3.5 kW portable AC charger is capable of charging all current and next-generation electric vehicles with Type-2 connectors. It is a single outlet portable charger designed to meet the evolving needs of customers with its compact, space-saving, and attractive design.

The system features a small footprint, convenient installation, and easy operation—offering true plug-and-charge usability.

Key Features

  • Power Output: 3.5 kW
  • Compact and attractive design
  • Charging Current Options: 6A, 10A, 13A, 16A
  • No fixed installation required—fully portable
  • Compatible with Type-2 vehicles
  • Plug and charge functionality
  • EV Standards: IEC 62196, IEC 61851
  • Controllable Charging Current

Technical Specifications

AC Input

  • Model No: MTEVSE-035P
  • Power Connection: 3 wires – L, N, PE
  • Voltage Range: 230V AC (±10%)
  • Frequency: 50Hz
  • Overall Efficiency: 99%

Output Ratings

  • Output Voltage: 230V AC
  • Output Current: Up to 16 Amp
  • Maximum Power: 3.6 kW
  • Output Mode: AC Output
  • Output Connector: Type 2 (IEC 62196)
  • IP Class: IP54 (Plug), IP65 (Control Box)
  • Environment: Indoor / Outdoor

Protection

  • Over Voltage
  • Under Voltage
  • Over Temperature
  • Ground Fault Protection
  • Electric Shock Protection
  • Residual Current Protection

Communication Standards

IEC 62196, IEC 61851
